The ticket that starts every F5 career

Night shift: “The new BIG-IP is licensed. GUI opens. Nobody can publish an application.” The trap is treating BIG-IP like a Linux router with a pretty web UI. It is not. Application traffic never uses the Linux kernel stack. It uses TMM.

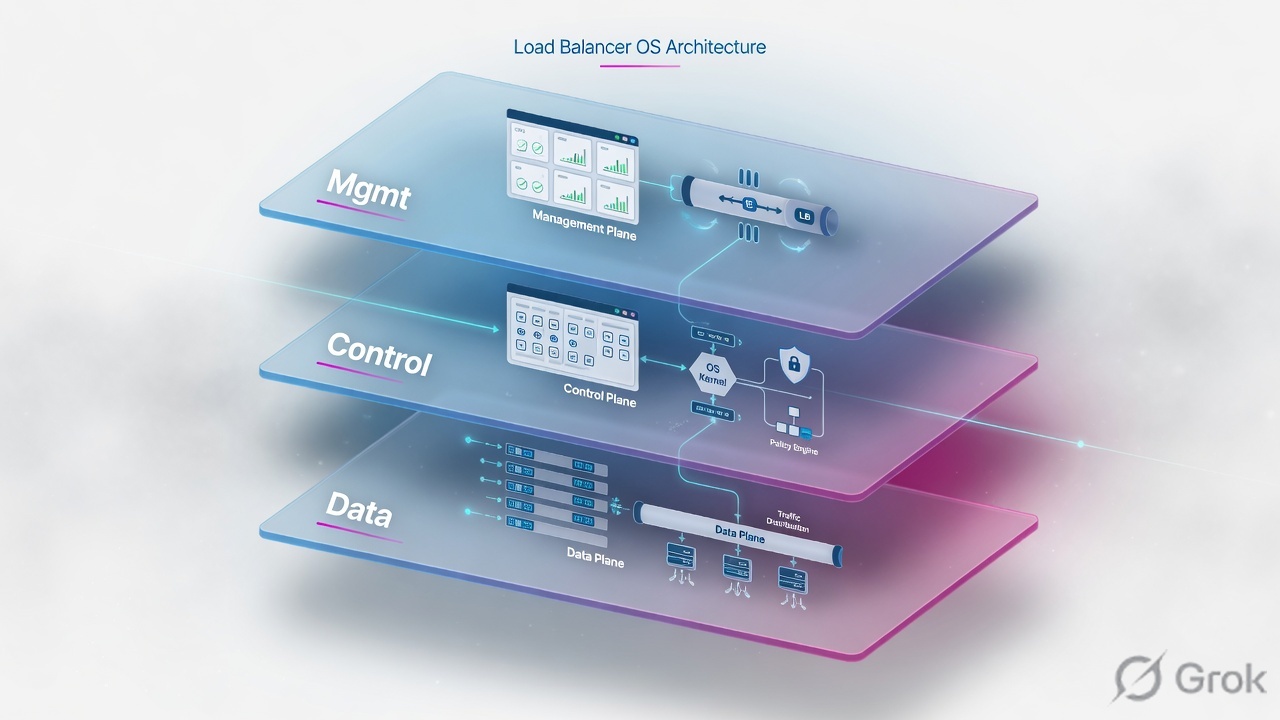

Management, control, and data planes of a load balancer — Three planes, three jobs. Mix them and you will put a VIP on the management NIC.

Quick answer

TMM processes application traffic. MCPD validates and pushes configuration. The Management IP is out-of-band admin only. License, then provision LTM, then save to disk, then take a UCS. Config in memory is not a backup.

Say this out loud

Provision puts CPU and RAM on a licensed module. Licensing without provisioning leaves LTM dark. Saving config writes memory to disk. UCS is the restore image — including keys.

Mental model: ADC, TMOS, TMM, MCPD

A traditional Layer-4 load balancer forwards on IP and port. An Application Delivery Controller (ADC) works at Layers 4–7: SSL, HTTP, persistence, health, iRules. F5 BIG-IP LTM is that ADC. Physical appliances, Virtual Edition on ESXi/KVM/Hyper-V, and public-cloud images all run the same TMOS idea.

Flow 1 · who does what

Admin input never becomes a packet. MCPD writes the config DB; TMM applies it to live traffic.

TMOS (Traffic Management Operating System) is the glue: Linux host + TMM + MCPD + GUI + TMSH. The Linux host gives you Bash and files. It does not load-balance HTTPS. Interview line from the PDF: “What processes application traffic — TMM or MCPD?” Answer: TMM.

Plane	Interface / IP	Carries
Management	mgmt NIC · Management IP e.g. 192.168.100.10	HTTPS GUI, SSH, iControl REST, licensing
Control / config	MCPD + config DB	Object create/modify, HA sync of config
Data	Self IPs + VIPs on VLANs	Client ↔ TMM ↔ pool member

Management IP vs Self IP vs VIP

	Management IP	Self IP	Virtual IP
Purpose	Admin the box	BIG-IP's own address on a VLAN	Client-facing listener
GUI path	System > Platform	Network > Self IPs	Local Traffic > Virtual Servers
App traffic?	No	Yes (TMM)	Yes (VS match)
HA	Not the floating app IP	Floating Self IP moves with traffic group	VIP floats with the same group

Common mistake

Never use a Self IP as the client-facing application address. Never route production traffic through mgmt. Module 2 builds the VLANs; this module only locks the names.

Runbook — first-day device

Side A · platform

Hostname, DNS, NTP, time zone
GUI: System > Platform. Skip NTP and SSL certificates, HA timers, and log correlation all lie. This is the number-one first-day miss in the Module 1 PDF.
Management IP + route
Set mgmt address, mask, and management default route so https://192.168.100.10 and SSH work from the admin laptop. This path is out-of-band.
Admin password
Change default admin immediately. Prefer TMSH over raw Bash for config — MCPD must own the files.

https://192.168.100.10/tmui/Control/jspmap/tmui/system/license/list

Training mock · not live

System > License

License

Registration key

XXXXX-XXXXX-XXXXX-XXXXX-XXXXXXX

Activation

Automatic (internet) or manual/offline

Status

Active · LTM licensed

TMSH

tmsh show sys license

Source: F5 ltm module 1.pdf · GUI path System > License. Never bypass licensing.

Side B · license then provision

A Registration Key activates modules. After license, you still must provision. Provisioning allocates CPU, memory, and disk among licensed modules.

Level	Meaning	When
None	No resources	Licensed but not needed on this box
Minimum	Small allocation	Lab / light auxiliary module
Nominal	Balanced	Typical production LTM
Dedicated	Maximum; other modules squeezed	One module must win

https://192.168.100.10/tmui/Control/jspmap/tmui/system/provision

Training mock · not live

System > Resource Provisioning

Resource Provisioning

LTM

Nominal

DNS / APM / AFM / WAF

None — unless this chassis is supposed to run them

TMSH

tmsh show sys provision

PDF trap: provisioning APM/AFM/WAF on an LTM-only box steals TMM memory.

Side C · save and UCS

GUI and TMSH changes are live in memory. Reboot without save and they vanish. UCS is the disaster-recovery archive: config, certs/keys, users, license.

TMSH · save + UCS

tmsh save sys config
tmsh save sys ucs /var/local/ucs/backup-$(date +%Y%m%d).ucs
tmsh list sys ucs
# restore is destructive — lab first
# tmsh load sys ucs /var/local/ucs/backup-20240101.ucs

GUI: System > Archives → Create. Store the file off-box. Restoring onto different hardware may need platform-migrate / no-license flags — test in lab. Source: BIG-IP Archives.

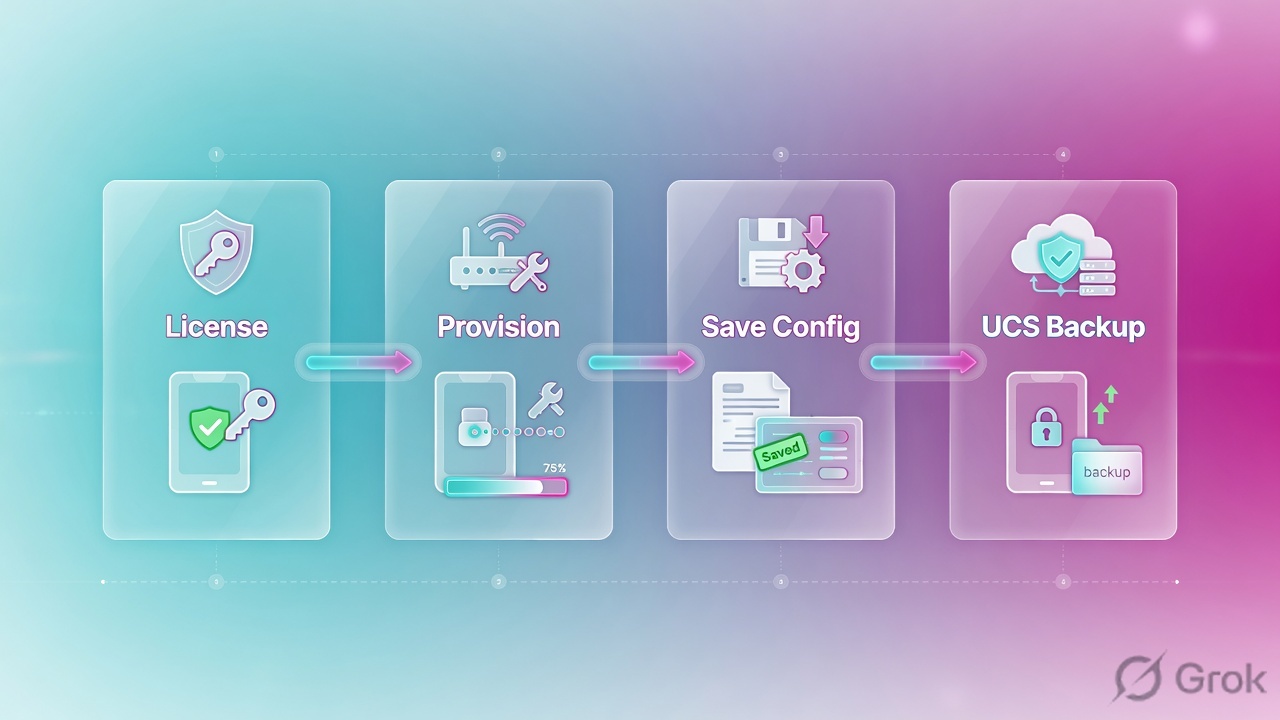

License, provision, save config, UCS backup pipeline — Order is the runbook: license → provision → configure later modules → save → UCS. Reverse it and you restore an empty box.

Access methods

Method	Use	Avoid
GUI HTTPS	Day-to-day objects, first setup	Using it as the only skill in an outage
SSH + TMSH	Show/list/modify, scripts	Editing bigip.conf in vi
Bash	Logs, tcpdump, files	Unsupported config file edits that MCPD cannot track

First-level health

tmsh show sys license
tmsh show sys provision
tmsh show sys performance all-stats
tmsh show sys memory
tmsh show ltm virtual
tmsh show net self

Operator desk with license and provisioning gauges — If license is unhappy, Virtual Servers can go dark. Check this before rewriting pools.

Traps + proof

Failure	Symptom	Proof
No NTP	HA oddness, SSL time errors, unusable logs	System > Platform time vs NTP peer
Licensed but not provisioned	LTM objects missing or module inactive	tmsh show sys provision
Unsaved config	Changes gone after reboot	tmsh save sys config after every real change
UCS only on the box	Disk dies, backup dies	Copy UCS off-box the same day
Bash-edited conf	MCPD / TMM disagree	Use TMSH/GUI; reload from known UCS

You are done with Module 1 when

You can draw mgmt vs Self IP vs VIP on a whiteboard.
tmsh show sys license and tmsh show sys provision both look sane.
A dated UCS file exists off the device.
